PA Series

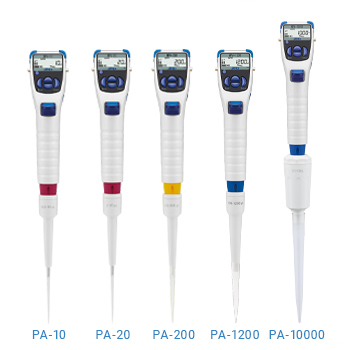

Single Channel Electronic Pipettes

  • Outperforming Manual Pipettes with Comfort, Ease & Accuracy!

Features

    • Accuracy/repeatability not dependent on human factors
    • Stress-minimized, pain-free operation using the forefinger
    • Easy calibration (adjustment) with the User CAL function*1*2
    • Calibration and display by either volume (µL/mL) or weight (mg)*1
    • Accurate pipetting possible with other manufacturers’ tips (List of compatible tips (PDF 40KB))
    • Dedicated glass tips and silicon adapters available
    • Multiple dispensing (MD) mode with automatic initial volume correction (pre-dispensing)
    • Mixing (MIX) mode for homogenizing solutions
    • Reverse operation for accurately dispensing viscous samples
    • Increased resistance to drop impacts with padding on the head*1
    • Aspirating and dispensing speeds adjustable to 5 different levels each
    • Storage for up to 9 programs
    • High resistance to acid/organic solvents
    • Quickly detachable, autoclavable lower part (121 deg C, 2 atm, 20 minutes)
    • Adjustable tip ejector reach
    • Extended finger hook
    • Power supply by either a rechargeable battery or switching (100-240V) AC adapter
    • Multiple AC adapter plugs (A, BF, C, S)
    • Auto power OFF function

Accessories

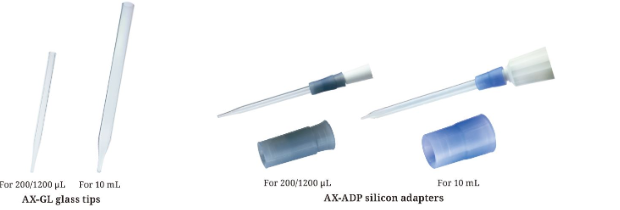

    • AX-GL-200/1200 : 10 glass tips + 2 silicon adapters (gray) for the PA-200/1200
    • AX-GL-10ML : 10 glass tips + 2 silicon adapters (blue) for the PA-10000
    • AX-ADP-200/1200 : 10 silicon adapters (gray) for the PA-200/1200
    • AX-ADP-10ML : 10 silicon adapters (blue) for the PA-10000

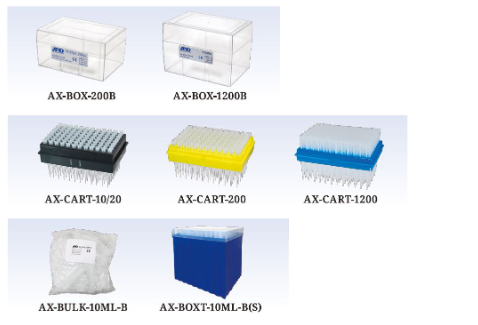

    • AX-BOX-200B : Tip box (no latch) for the PA-10/20/200*3
    • AX-BOX-1200B : Tip box (no latch) for the PA-1200*3
    • AX-CART-10/20 : Tip cartridge (96 sterile tips × 10 sets) for the PA-10/20
    • AX-CART-200 : Tip cartridge (96 sterile tips × 10 sets) for the PA-200
    • AX-CART-1200 : Tip cartridge (96 sterile tips × 10 sets) for the PA-1200
    • AX-BULK-10ML-B : Bagged tips (200 tips × 1 bag) for the PA-10000
    • AX-BOXT-10ML-B : Racked tips (25 tips × 1 rack) for the PA-10000
    • AX-BOXT-10ML-BS : Racked sterile tips (25 sterile tips × 1 rack) for the PA-10000

    • AX-LOW-10 : Lower part of the PA-10

    • AX-LOW-20 : Lower part of the PA-20

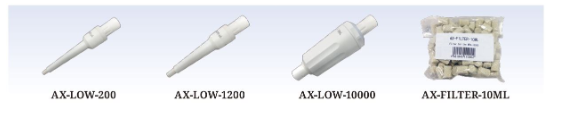

    • AX-LOW-200 : Lower part of the PA-200

    • AX-LOW-1200 : Lower part of the PA-1200

    • AX-LOW-10000 : Lower part of the PA-10000

    • AX-FILTER-10ML : Filter for the PA-10000 (100 pcs)

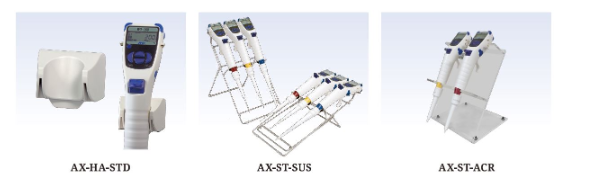

    • AX-HA-STD : Pipette hanger
    • AX-ST-SUS : Stainless steel stand for up to three PAs
    • AX-ST-ACR : Acrylic stand for up to two PAs

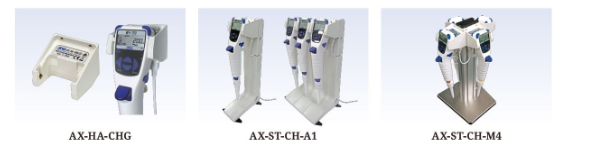

    • AX-HA-CHG : Charging hanger
    • AX-ST-CH-A1 : Charging stand for single pipette
    • AX-ST-CH-M4 : Charging stand for four pipettes

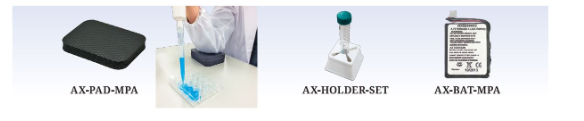

    • AX-BAT-MPA : Lithimum-ion rechargeable battery
    • AX-KO4730-10 : Linking cable (10 cm, for connection between charging hangers/stands)
    • AX-TB283 : AC adapter (A, BF, C and S plugs are included)*4
    • AX-PAD-MPA : Pipette elbow cushion (NBR & polyurethane, 4 sheets × 1 set)
    • AX-HOLDER-SET : Sample cup holder set (Silicon rubber with anti-static treatment, large/medium/small × 1 set)

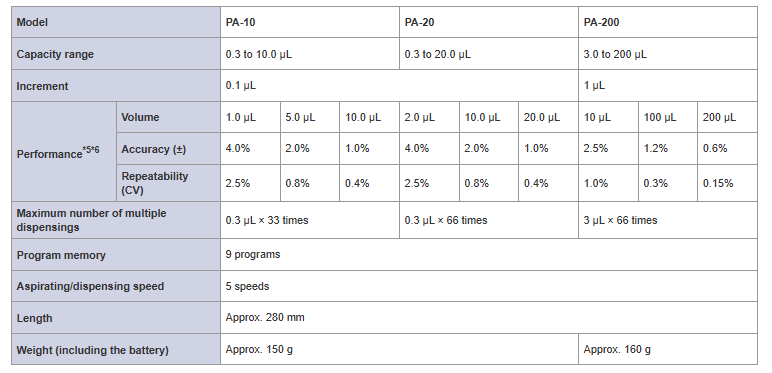

Specifications
