MPB Series

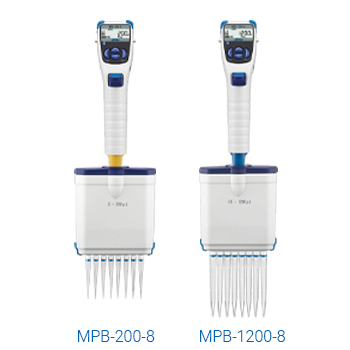

Multiple Channel Electronic Pipettes

Outperforming Manual Pipettes with Comfort, Ease & Accuracy!

Note: MPB-1200-8 has been discontinued

PDFManual (PDF 2.9 MB)

 When using the MPB series

When using a pipette that has not been used for a couple of hours we
 recommend aspirating and dispensing it prior to subsequent use. This
 will ensure smooth piston movement allowing for more precise
 dispensing.

PDFQuick operation guide (PDF 788 KB)

PDFSupplementary manual for advanced functions (PDF 561 KB)

PDFList of compatible tips (PDF 37 KB)

Features
  • Accuracy/repeatability not dependent on human factors
  • Stress-minimized, pain-free operation using the forefinger
  • Individually detachable cylinders, enabling to change the number of channels (max. eight channels)*1
  • Easy calibration (adjustment) with the User CAL function*2*3
  • Calibration and display by either volume (μL/mL) or weight (mg)*2
  • Accurate pipetting possible with other manufacturers’ tips
  • Dedicated glass tips and silicon adapters available
  • Multiple dispensing (MD) mode with automatic initial volume correction (pre-dispensing)
  • Mixing (MIX) mode for homogenizing solutions
  • Reverse operation for accurately dispensing viscous samples
  • Increased resistance to drop impacts with padding on the head*2
  • Aspirating and dispensing speeds adjustable to 5 different levels each
  • Storage for up to 9 programs
  • High resistance to acid/organic solvents
  • Adjustable tip ejector reach
  • Extended finger hook
  • Power supply by either a rechargeable battery or switching (100-240V) AC adapter
  • Multiple AC adapter plugs (A, BF, C, S)
  • Auto power OFF function

*1 Patent pending

*2 Patented

*3 For verification of dispensed volumes necessary for calibration, the

Read More
Accessories

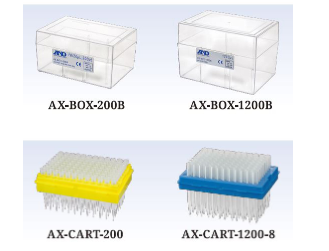

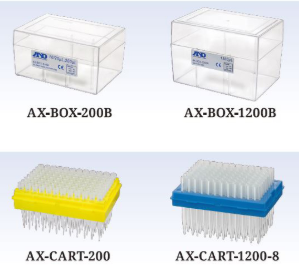

  • AX-BOX-200B : Tip box (no latch) for the MPB-200-8*4
  • AX-BOX-1200B : Tip box (no latch) for the MPB-1200-8*4
  • AX-CART-200 : Tip cartridge (96 sterile tips × 10 sets) for the MPB-200-8
  • AX-CART-1200-8 : Tip cartridge (96 sterile tips × 10 sets) for the MPB-1200-8

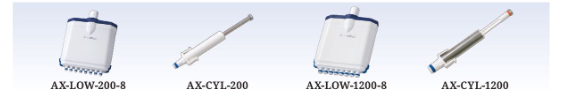

  • AX-LOW-200-8 : Lower part of the MPB-200-8
  • AX-CYL-200 : Cylinder unit for the MPB-200-8 (8 pcs)
  • AX-LOW-1200-8 : Lower part of the MPB-1200-8
  • AX-CYL-1200 : Cylinder unit for the MPB-1200-8 (8 pcs)

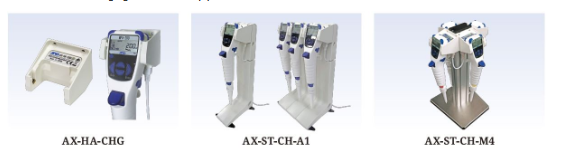

  • AX-HA-CHG : Charging hanger
  • AX-ST-CH-A1 : Charging stand for single pipette
  • AX-ST-CH-M4 : Charging stand for four pipettes

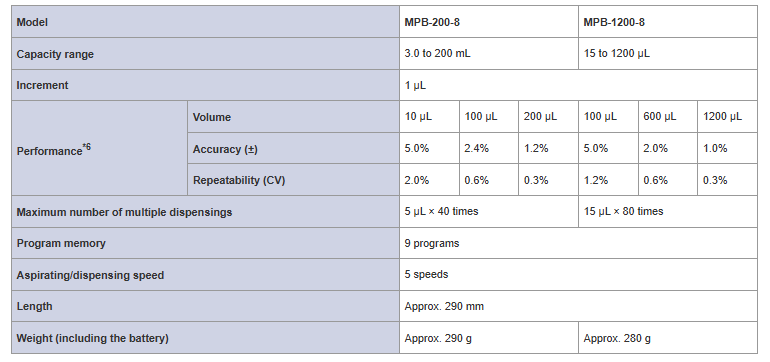

Specifications
Model MPB-200-8 MPB-1200-8
Capacity range 3.0 to 200 mL 15 to 1200 µL
Increment 1 µL
Performance*6 Volume 10 µL 100 µL 200 µL 100 µL 600 µL 1200 µL
Accuracy (±) 5.0% 2.4% 1.2% 5.0% 2.0% 1.0%
Repeatability (CV) 2.0% 0.6% 0.3% 1.2% 0.6% 0.3%
Maximum number of multiple dispensings 5 µL × 40 times 15 µL × 80 times
Program memory 9 programs
Aspirating/dispensing speed 5 speeds
Length Approx. 290 mm
Weight (including the battery) Approx. 290 g Approx. 280 g
*6 In standard (AUTO) mode with maximum aspirating and dispensing speeds

Note: MPB-1200-8 has been discontinued.
