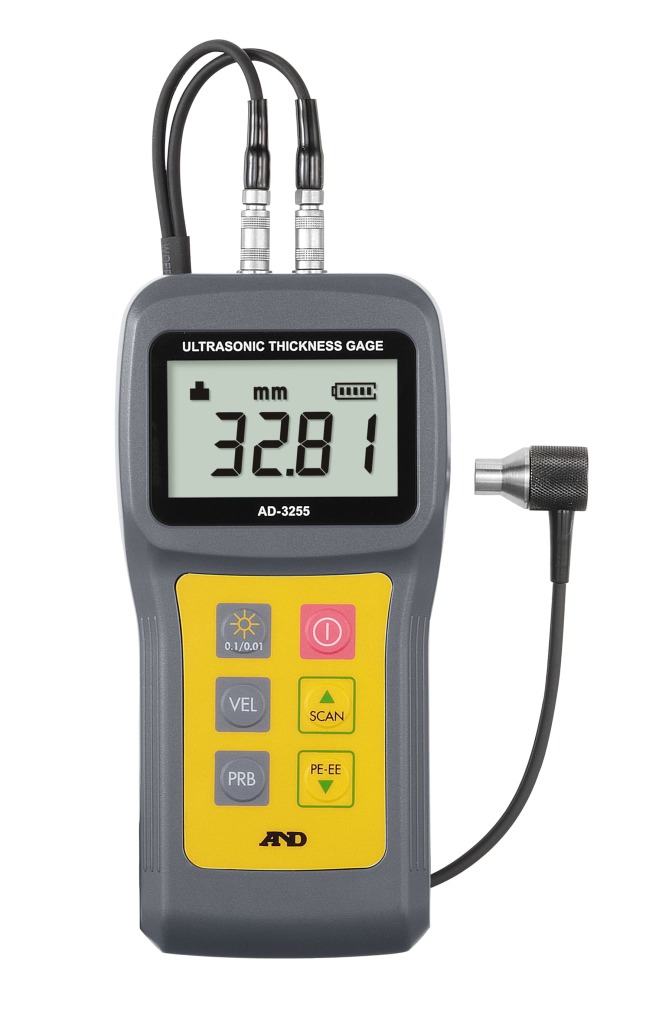

AD-3255

Ultrasonic Thickness Gage

PDFBrochure

PDFInstruction Manual

Features
  • Measures the thickness of a variety of materials such as metal, glass, plastic, ceramic and epoxy
  • Measures Wide measurement range from 0.8 to 300mm
  • 0.01 mm display resolution (display can switch between 0.01/0.1mm)
  • Equipped with scan mode for measuring minimum thickness range
  • Four types of probes can be used to suit your needs
    AD-3255-02 (Standard probe) Measurement range from 0.8 to 200.0mm
    AD-3255-03 (Option) Measurement range from 1.0 to 300.0mm
    AD-3255-04 (Option) Measurement range from 2.0 to 300.0mm
    AD-3255-05 (Option) Measurement range from 3.0 to 300.0 mm
  • Comes with 4 mm equivalent test piece for Zero point calibration for probe.
  • The thickness of an object excluding paints and coatings can be measured with Echo-echo mode using AD-3255-04 probe.
    (Measurement range from 4.0～30.0mm)
  • Sound velocity calibration is possible
    (Single point and two-point calibration as well as numerical input calibration are possible, configuration and calibration data are recorded)
  • Coupling status displayed for contact status confirmation
  • Backlight for use in dark environments
Read More
Standard Accessories

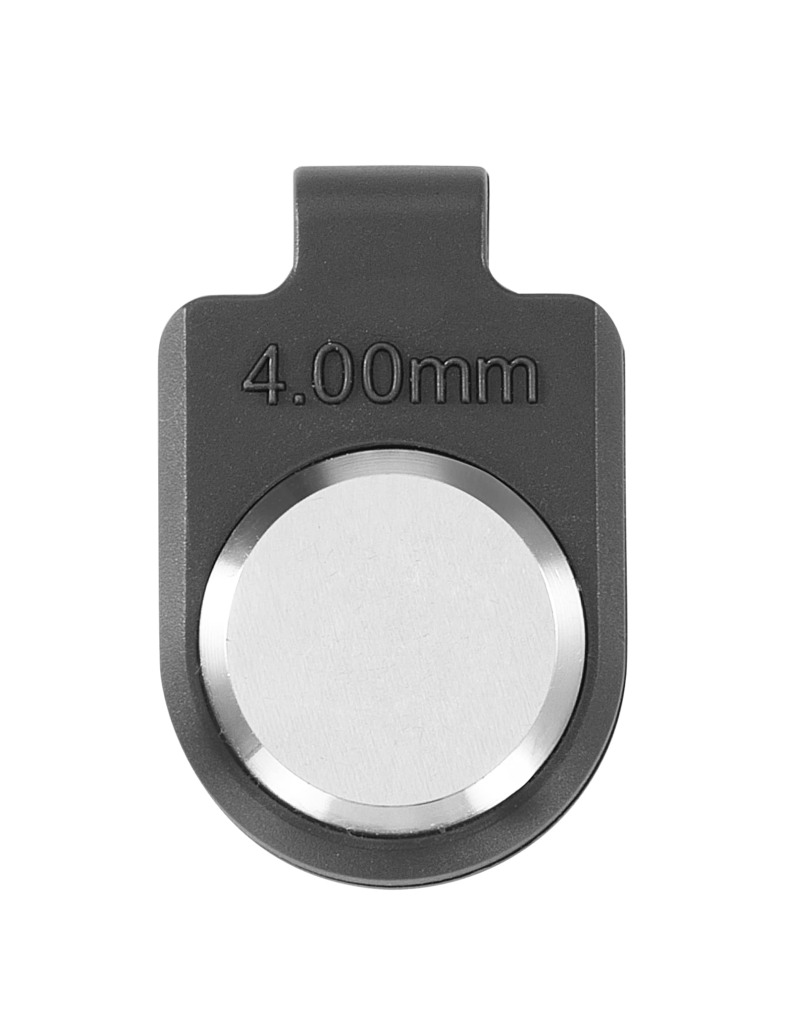

AD-3255-01
4.00mm test piece with Strap

ad3255_1

AD-3255-02
7MHz probe Measurement range from 0.8 to 200.0mm

Options

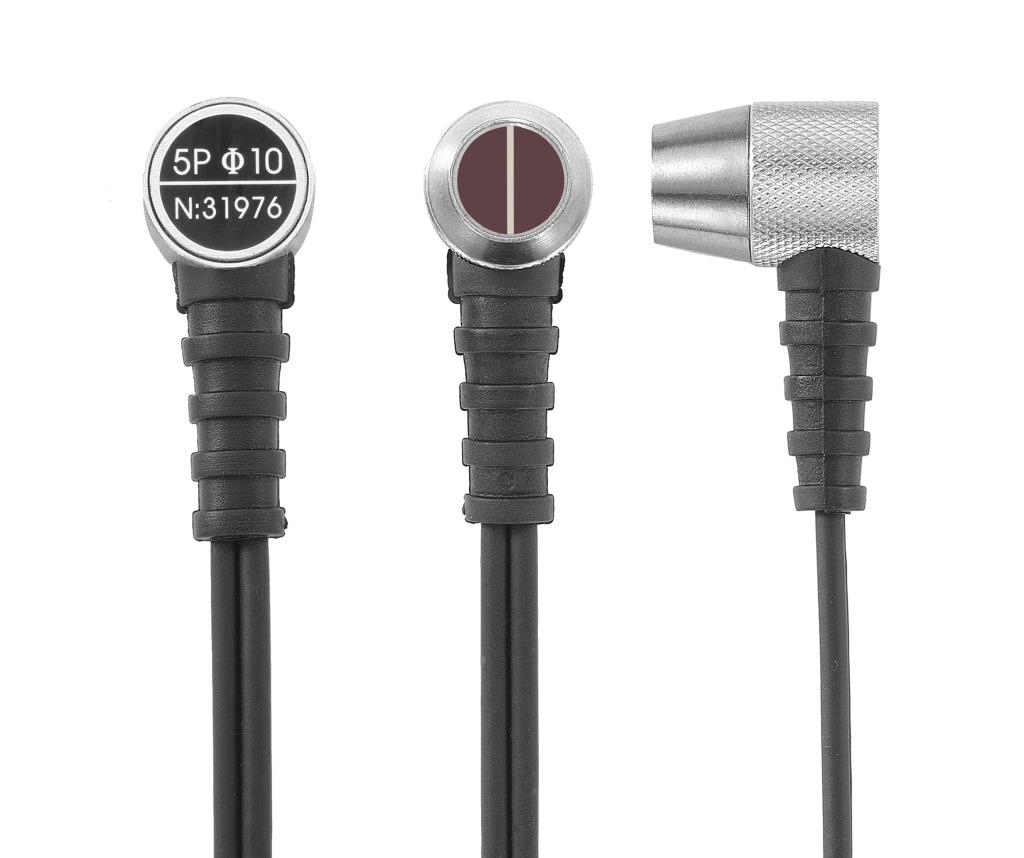

AD-3255-03
5MHz probe Measurement range from 1.0 to 300.0mm

AD-3255-04
5MHz probe Measurement range from 2.0 to 300.0mm
