• Weighing


A&D Fortis FZ(-WP)/FX(-WP) Series

Standard-Level Analytical/Precision Balances

  • Pay for What Matters
    —Reliable, Accurate Weighing

Features

  • High-speed weighing with 1-second stabilization*1
  • Compact Super Hybrid Sensor (C-SHS) enabling footprints smaller than an A4 sheet of paper
  • Anti-static, shatter-resistant, and easily-detachable breeze break with rotary sliding doors*2
  • IP65 dust and waterproof (FZ-WP/FX-WP)
  • Guarded against accidental overloading
  • Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor (patented)
  • Shock logging function that records up to 50 adverse impact loads with a timestamp for later inspection
  • One-touch sensitivity adjustment with an internal weight (FZ/FZ-WP)
  • Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
  • Clearly visible, reverse-backlit LCD (main character height: 16 mm)
  • Counting mode with Automatic Counting Accuracy Improvement (ACAI)
  • Density determination function for automatic density calculation (a separately-sold density determination kit, AD-1654, is also available)
  • Underhook for weighing by hanging
  • Multiple units of measure: g, mg*2, oz, lb*1, lb-oz*1, ozt, ct, mom, dwt, gr, and a user-programmable unit for conversion applications
    (either tael, tola or Newton can be added upon request)
  • Comparator mode with buzzer for intuitive, error-free check weighing
  • Percent mode useful for target weighing or checking sample variation
  • Animal weighing (average & hold) function for weighing moving objects
  • Statistical calculation function (SCF) to facilitate the analysis of measurements
  • Capacity indicator that lets you know the remaining capacity of the balance
  • GLP/GMP/GCP/ISO compliant output to meet documentation requirements
  • User access control (UAC) that password-protects the balance from misuse
  • Clock and calendar function (FZ/FZ-WP)
  • Auto power ON and OFF functions
  • Optional built-in rechargeable battery (FXi-09) available*3

*1 For 0.001/0.01 g models
*2 For 0.0001 g models
*3 14 hours of charging for 8 hours of continuous operation (the balance cannot be used while recharging the battery at the same time)

Videos

External Input/Output

  • RS-232C interface (standard)
  • Quick/bi-directional USB interface (optional)
  • Ethernet (TCP/IP) interface (optional)
  • Bluetooth® interface (optional)

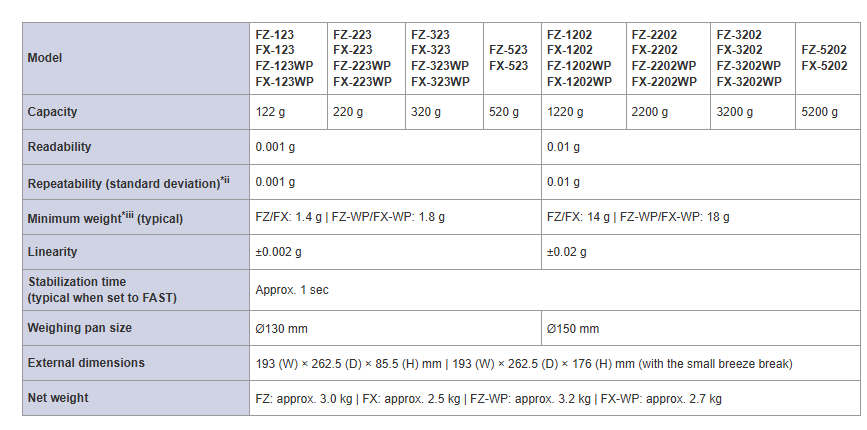

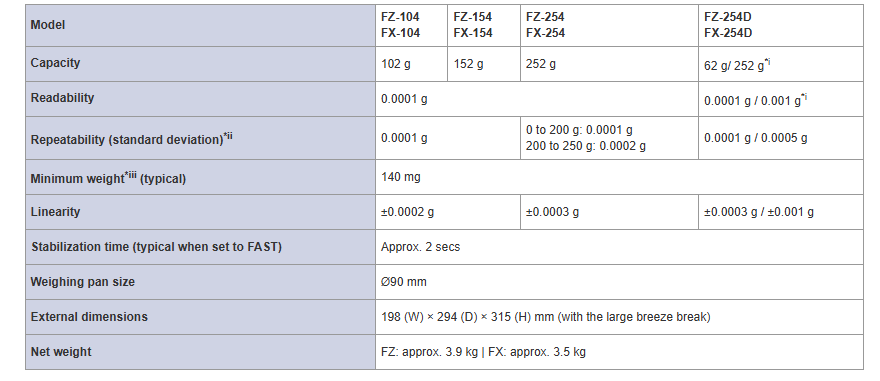

Specifications

*i Smart range function: Automatically switches between the precision and standard ranges, and recovers the full precision range as the tare operation is performed.
*ii Repeatability can worsen depending on the environmental conditions and operator skills.
*iii Pursuant to the United States Pharmacopeia (USP), Chapter 41
