• Weighing


FS-i Series/FS-D

IP65 Dust and Waterproof Checkweighing Scales

  • High-speed Weighing & High-speed Judgment!

Features

  • Ultra high-speed weighing with 0.5-second stabilization

  • Distinct tricolor LEDs for fast and error-free comparator judgment

  • Take-away checkweighing using the auto-tare function

  • Washable and hygienic stainless steel (SUS304) display unit and weighing pan

  • Waterproof and corrosion-resistant load cell*

  • Fast data acquisition with a refresh rate of 20 times/second

  • Large memory of 100 comparator settings

  • 60-segment analog sweep (horizontal bar) display for intuitive filling control

  • Simple operation mode to prevent accidental changes to the settings

  • Sealed Lead Acid (SLA) rechargeable battery for approx. 80 hours operation (optional)

  • The display unit available separately as an indicator for check weighing scales (FS-D)

  • Universal Flexi Coms (UFC) function to edit serial data output/printout format (Relevant Software: WinCT-UFC)

* Aluminum anodized and coated with epoxy resin with protective silicon over wiring

Videos

External Input/Output

  • RS-232C + comparator relay output (optional)
  • RS-422/485 + comparator relay output (optional)

Options

  • HC-02i : Sealed lead acid rechargeable battery (6V, 4Ah)
  • FS-03i : RS-232C + comparator relay output
  • FS-04i : RS422/485 + comparator relay output

** FS-03i and FS-04i cannot be used at the same time.

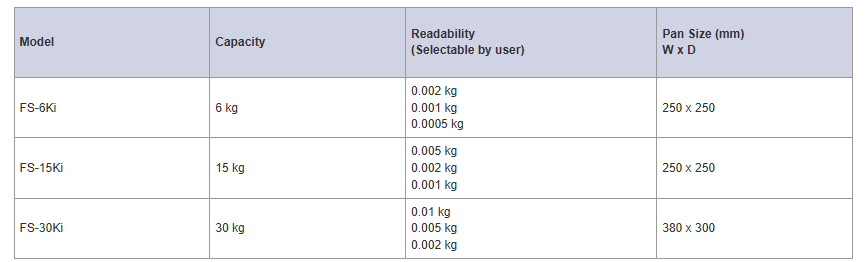

Specifications

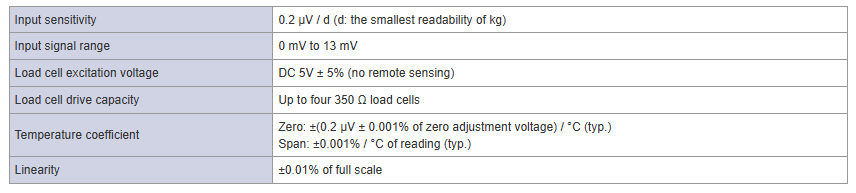

Specifications (FS-D)
