• Weighing

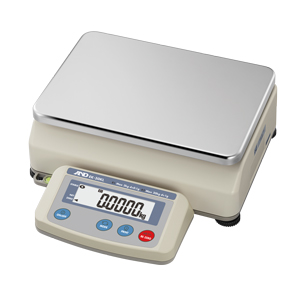

EK-L Series

Precision Bench Scales

  • A choice to be made—depending on your intended use!

Features

  • EK-15KL: Ideal for use where large capacity and high readability are simultaneously required
  • EK-30KL: Especially useful when the gross weight exceeds 15 kg, yet 0.1 g readability is necessary to measure the net weight
  • Large (300 × 210 mm) weighing pan for efficient measurements of bulky objects or quantities
  • Hygienic and scratch-resistant stainless steel (SUS430) weighing pan cover
  • Easy-to-read LCD display with clear, white backlight (22 mm character height)
  • RS-232C interface as standard
  • GLP/GMP/GCP/ISO compliant output
  • Multiple weighing units: g, kg, oz, lb, ozt (tael can be added upon request)
  • Counting mode with Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function
  • Comparator function
  • Display hold function
  • Operation with either AC adapter or optional rechargeable battery
  • Auto power OFF function
  • Battery life indicator
  • Security ring for wire-locking the scale to prevent theft

External Input/Output

  • RS-232C interface

Options

  • HC-02i : Sealed lead acid rechargeable battery (6 V, 4 Ah)

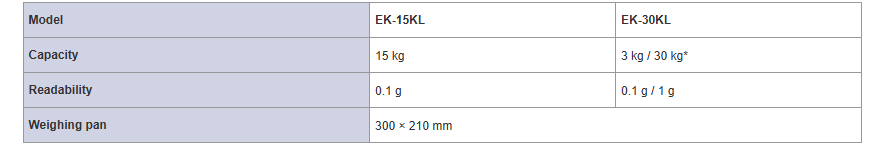

Specifications

* Smart range function: The readability will switch to 1 g when the display value exceeds 3 kg but returns to 0.1 g by pressing the Re-Zero key.
