• Weighing

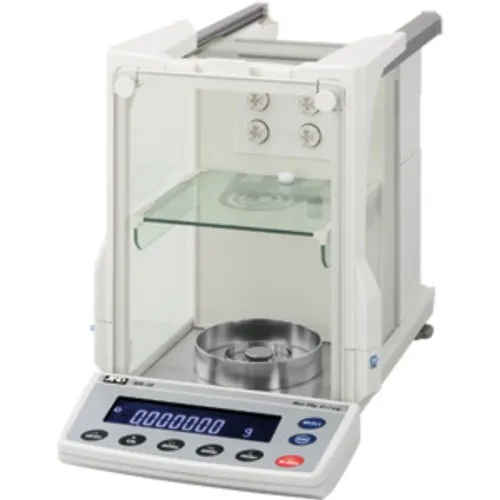

BM Series

Micro Analytical Balances

  • Built-in fanless ionizer!

Features

  • A built-in fanless ionizer that allows for instant removal of destabilizing static electricity from the sample and container
  • Includes four 0.001 mg readability models to be selected for different purposes
  • Comes equipped with the AD-1676 tabletop breeze break (medium) as standard (BM-5/5D/20/22)
  • Anti-static glass breeze break with a transparent evaporated metal coating
  • Adjustable (manual or automatic) response characteristics to help cope with the effect of drafts and vibrations
  • Automatic self calibration to maintain accuracy under temperature changes
  • Automatic repeatability test function using the internal adjustment weight for simple precision checks at the location
  • Embedded temperature, humidity and atmospheric pressure sensors
  • Interlockable sliding doors that allow for efficient operation with both hands
  • Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, gr, specific gravity (either tael or tola can be added upon request)
  • Comes standard with a micro spatula, cleaning brushes (large and small), tweezers for calibration weight, and dust cover for storage
  • Clearly visible, reverse-backlit LCD
  • GLP/GMP/GCP/ISO compliant output
  • Clock and calendar function
  • Data memory function
  • RS-232C and Quick USB interfaces as standard
  • Counting mode with the Automatic
  • Counting Accuracy Improvement (ACAI) function
  • Percent mode function
  • Comparator function with buzzer
  • Auto power on function
  • Underhook function

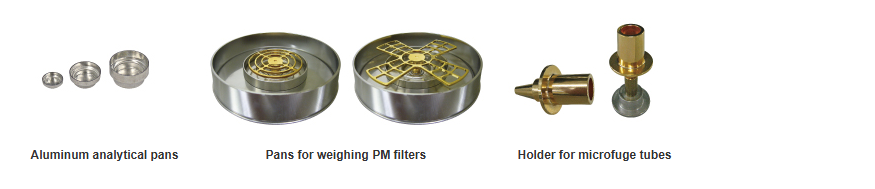

  • Special pans/holder (BM-5/5D/20/22)
  • Density determination function and an optional density determination kit (for BM-252/200/300/500 only)
  • Optional pipette accuracy testing kit
  • Expert assessment of the set-up environment using
  • AND-MEET*1 (please inquire at your local distributor for details)

Videos

External Input/Output

  • RS-232C interface
  • Quick USB interface
  • Ethernet (TCP/IP) interface (optional)

Options

  • BM-08: Ethernet (TCP/IP) interface (optional)*2
  • BM-014: Pipette accuracy testing kit*3    PDFManual (PDF 193 KB)

    *2 BM-08 and Quick USB (standard) cannot be used at the same time.
    *3 Cannot be used with the BM-5/5D.

Accessories

  • AD-1653 : Density determination Kit (for the BM-252/200/300/500 only)
  • AD-1671 : Anti-vibration table for balances

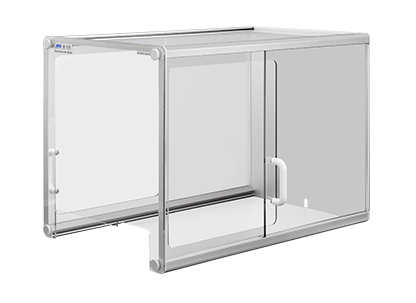

  • AD-1676 : Tabletop breeze break (medium)
  • PDFManual (PDF 302 KB)
  • AD-1682 : Rechargeable battery unit
  • AD-1684A : Electrostatic field meter
  • AD-1687 : Weighing environment logger
  • AD-1688 : Weighing data logger
  • AD-1689 : Tweezers for calibration weight*4
  • AD-8129TH : Compact printer
  • AD-8526 : RS-232C/Ethernet (TCP/IP) converter
  • AD-8529PC-W : Bluetooth® converter for PC
  • AD-8529PR-W : Bluetooth® converter for printer
  • AD-8920A : Remote display
  • AD-8922A : Remote controller
  • AX-BM-031 : Display covers (5 pcs)
  • AX-BM-032 : Microtube holder for the BM-5/5D/20/22*5
  • AX-BM-033 : Dust cover for storage
  • AX-BM-034 : Microtube holder for the BM-252/200/300/500
  • AX-BM-035 : Slide breeze break (for the
  • BM-5/5D/20/22 only)
  • AX-BM-NEEDLESET : Discharge electrode units for the ionizer (a set of 4 pcs)
  • AX-CLEANING-SET : Balance cleaning set (large and small brushes and a chamois leather)
  • AX-HOLDER-SET-B : Sample cup holder set (antistatic)
  • AX-ROUND-PAN-L : Round aluminum analytical pans (∅15 mm, 0.8 ml, 100 pcs)
  • AX-ROUND-PAN-M : Round aluminum analytical pans (∅12 mm, 0.3 ml, 100 pcs)
  • AX-ROUND-PAN-S : Round aluminum analytical pans (∅8 mm, 0.05 ml, 100 pcs)
  • AX-SW137-PRINT : Foot switch for PRINT (with connector)
  • AX-SW137-REZERO : Foot switch for RE-ZERO (with connector)
  • AX-TWEEZERS-25 : Tweezers for calibration weight (recommended for use with the BM-5/5D/20/22)
  • AX-USB-9P : RS-232C/USB converter with cable

*4 AX-TWEEZERS-25 is recommended for the BM-5/5D/20/22.
*5 The weight of this holder is heavier than the standard weighing pan by approx. 2 g, leaving only approx. 3 g for weighing (including both the microfuge tube and sample) with the BM-5/5D.

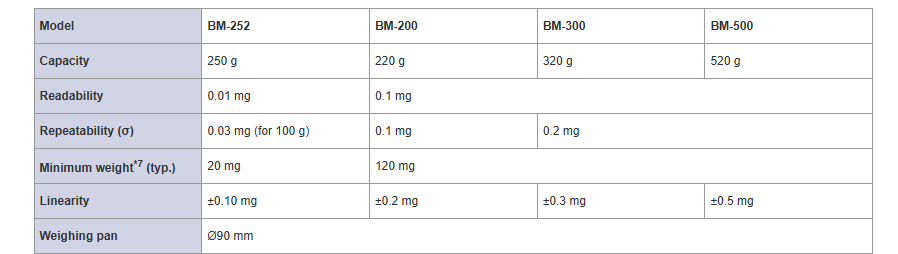

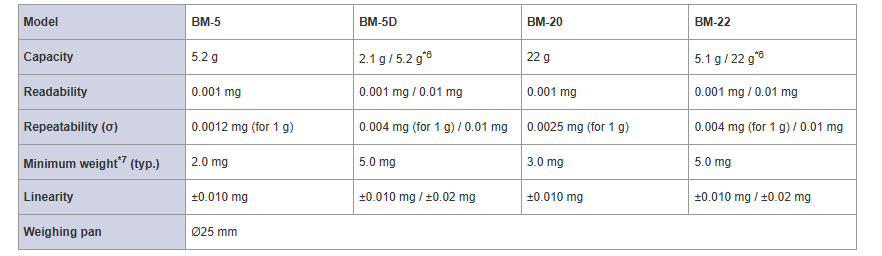

Specifications

*6 Smart range function: The readability will switch to 0.01 mg automatically when the display value exceeds 2.1 g (BM-5D) or 5.1 g (BM-22) but will return to 0.001 mg by pressing the RE-ZERO key.
*7 Pursuant to the United States Pharmacopeia (USP), Chapter 41
