• Weighing

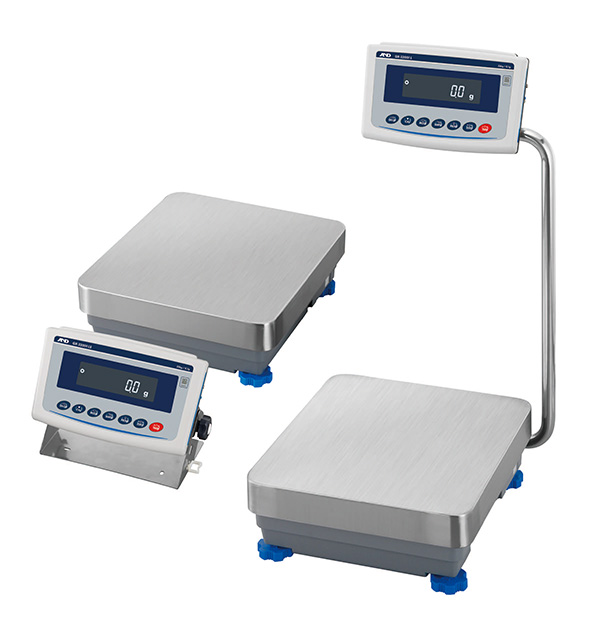

A&D Apollo GX-L/GF-L Series

High-Capacity Precision Balances

  • Taking Weighing Precision and Protection to New Heights

Features

  • Flexible display position with either swing-arm or separate display stand
  • IP65 dust and waterproof
  • Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor*1
  • Shock logging function that records up to 50 adverse impact loads with a timestamp for later inspection
  • Flow rate display (FRD) that makes calculating and recording flow rates easier and more accurate*2
  • Flow rate comparator that indicates whether the flow rate is within the designated limits
  • Automatic level detection and warning
  • Tare memory function that saves the tare value in non-volatile memory
  • AD-Just – Automatic self-sensitivity adjustment according to the set execution condition using the internal weight (GX-L)
  • Automatic precision assessment (APA) using the electronically controlled load (ECL)
  • Automatic minimum weight calculation with either ECL or an actual, external weight
  • Alert function to ensure that the measured quantity is not smaller than the set minimum weight
  • Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
  • User access control (UAC) that password-protects the balance from misuse
  • GLP/GMP/GCP/ISO compliant output to meet documentation requirements
  • Universal Flexi Coms (UFC) to customize printout content and layout *3
  • Gross/Net/Tare output
  • Data memory function to save weighing results, sensitivity adjustment/calibration test results, unit masses to be used in counting mode, etc., in the device itself
  • Counting mode with the Automatic
  • Counting Accuracy Improvement (ACAI) function
  • Percent mode function for target weighing or checking sample variation
  • Animal weighing (average & hold) function for weighing moving objects
  • Statistical calculation function (SCF) to facilitate the analysis of measurements
  • Five-level comparator function with buzzer
  • Auto power ON and OFF functions
  • Density determination function
  • Underhook for weighing a magnetic material as well as measuring density (optional)

External Input/Output

  • RS-232C interface (standard)
  • Quick/bi-directional USB interface*4 (standard)
  • Comparator relay output/buzzer/external key input interface (optional)
  • Analog (0-1/0.2-1 V) output interface (optional)


*4 Users can toggle between the Quick USB mode (plug-and-play with weighing data output to a PC only) and the Virtual COM mode (for bi-directional communication) with internal settings. For the latter, a special driver (available for download here) needs to be installed on the PC (except for those with Windows 10/11).

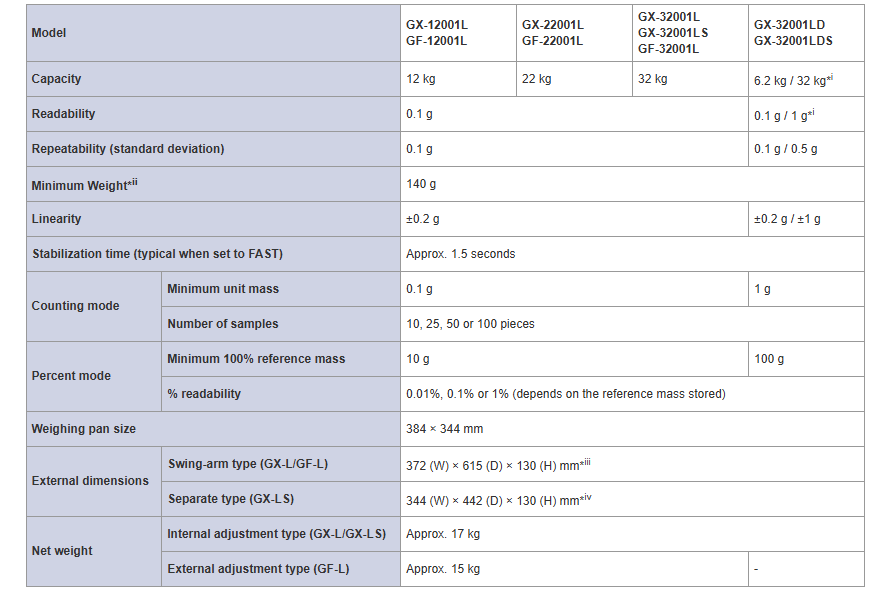

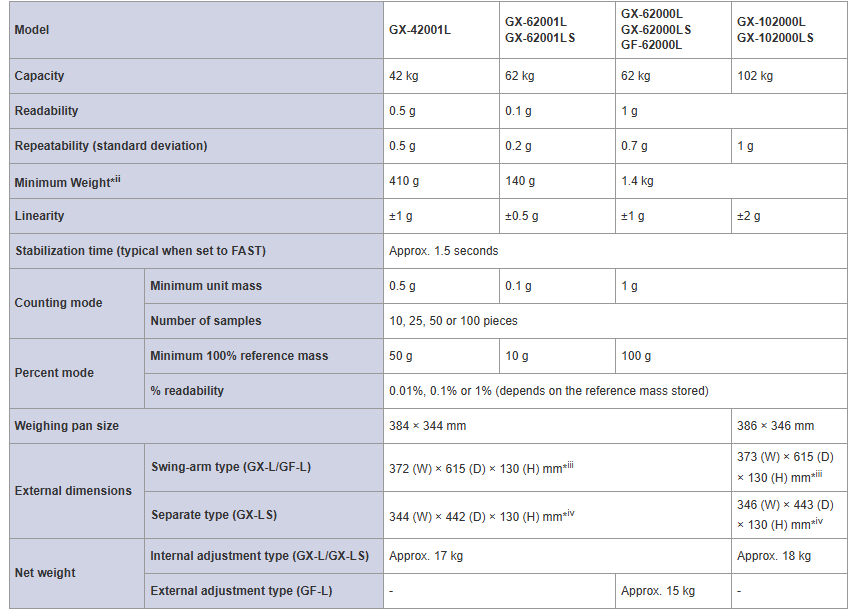

Specifications

*i Smart range function: Automatically switches between the precision and standard ranges, and recovers the full precision range with a press of the TARE key.
*ii Pursuant to the United States Pharmacopeia (USP), Chapter 41
*iii Dimensions when the swing-arm stand is pulled fully down.
*iv Dimensions of the base unit. The dimensions of the display unit is 260 (W) × 164 (D) × 202 (H) mm, and the cable length is 3 m.
