High-Capacity Precision Balances
Taking Weighing Precision and Protection to New Heights
Dedicated software WinCT-GXA-Filter
This software is for users who wish to install the GX-L/GF-L balance in an automated weighing system and adjust its response settings beyond the standard settings.
Parameter setting software WinCT-ParamSet
This software can read and change the internal settings of an A&D electronic balance all at once.

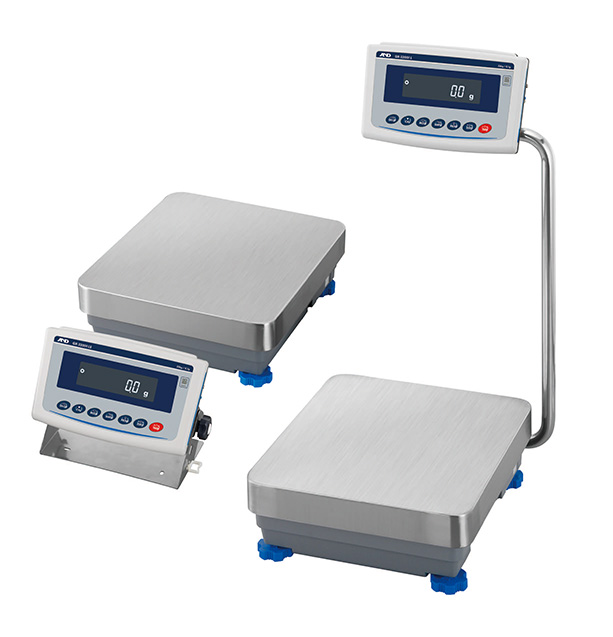

Flexible display position with either swing-arm or separate display stand- IP65 dust and waterproof
- Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor*1
- Shock logging function that records up to 50 adverse impact loads with a timestamp for later inspection
- Flow rate display (FRD) that makes calculating and recording flow rates easier and more accurate*2
- Flow rate comparator that indicates whether the flow rate is within the designated limits
- Automatic level detection and warning
- Tare memory function that saves the tare value in non-volatile memory
- AD-Just – Automatic self-sensitivity adjustment according to the set execution condition using the internal weight (GX-L)
- Automatic precision assessment (APA) using the electronically controlled load (ECL)
- Automatic minimum weight calculation with either ECL or an actual, external weight
- Alert function to ensure that the measured quantity is not smaller than the set minimum weight
- Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
- User access control (UAC) that password-protects the balance from misuse
- GLP/GMP/GCP/ISO compliant output to meet documentation requirements
- Universal Flexi Coms (UFC) to customize printout content and layout*3
- Gross/Net/Tare output
- Data memory function to save weighing results, sensitivity adjustment/calibration test results, unit masses used in counting mode, and more in the device itself
- Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
- Percent mode function for target weighing or checking sample variation
- Animal weighing (average & hold) function for weighing moving objects
- Statistical calculation function (SCF) to facilitate the analysis of measurements
- Five-level comparator function with buzzer
- Auto power ON and OFF functions
- Density determination function
- Underhook for weighing magnetic materials and measuring density (optional)
RS-232C interface (standard)
Quick/bi-directional USB interface*4 (standard)
Comparator relay output/buzzer/external key input interface (optional)
Analog (0-1/0.2-1 V) output interface (optional)
*4 Users can toggle between the Quick USB mode (plug-and-play with weighing data output to a PC only) and the Virtual COM mode (for bi-directional communication) with internal settings. For the latter, a special driver (available for download here) needs to be installed on the PC (except for those with Windows 10/11).
| Model | GX-12001L GF-12001L |
GX-22001L GF-22001L |
GX-32001L GX-32001LS GF-32001L |
GX-32001LD GX-32001LDS |
|
|---|---|---|---|---|---|
| Capacity | 12 kg | 22 kg | 32 kg | 6.2 kg / 32 kg*i | |
| Readability | 0.1 g | 0.1 g / 1 g*i | |||
| Repeatability (standard deviation) | 0.1 g | 0.1 g / 0.5 g | |||
| Minimum Weight*ii | 140 g | ||||
| Linearity | ±0.2 g | ±0.2 g / ±1 g | |||
| Stabilization time (typical when set to FAST) | Approx. 1.5 seconds | ||||
| Counting mode | Minimum unit mass | 0.1 g | 1 g | ||
| Number of samples | 10, 25, 50 or 100 pieces | ||||
| Percent mode | Minimum 100% reference mass | 10 g | 100 g | ||
| % readability | 0.01%, 0.1% or 1% (depends on the reference mass stored) | ||||
| Weighing pan size | 384 × 344 mm | ||||
| External dimensions | Swing-arm type (GX-L/GF-L) | 372 (W) × 615 (D) × 130 (H) mm*iii | |||
| Separate type (GX-LS) | 344 (W) × 442 (D) × 130 (H) mm*iv | ||||
| Net weight | Internal adjustment type (GX-L/GX-LS) | Approx. 17 kg | |||
| External adjustment type (GF-L) | Approx. 15 kg | — | |||
| Model | GX-42001L | GX-62001L GX-62001LS |
GX-62000L GX-62000LS GF-62000L |
GX-102000L GX-102000LS |
|
|---|---|---|---|---|---|
| Capacity | 42 kg | 62 kg | 62 kg | 102 kg | |
| Readability | 0.5 g | 0.1 g | 1 g | ||
| Repeatability (standard deviation) | 0.5 g | 0.2 g | 0.7 g | 1 g | |
| Minimum Weight*ii | 410 g | 140 g | 1.4 kg | ||
| Linearity | ±1 g | ±0.5 g | ±1 g | ±2 g | |
| Stabilization time (typical when set to FAST) | Approx. 1.5 seconds | ||||
| Counting mode | Minimum unit mass | 0.5 g | 0.1 g | 1 g | |
| Number of samples | 10, 25, 50 or 100 pieces | ||||
| Percent mode | Minimum 100% reference mass | 50 g | 10 g | 100 g | |
| % readability | 0.01%, 0.1% or 1% (depends on the reference mass stored) | ||||
| Weighing pan size | 384 × 344 mm | 386 × 346 mm | |||
| External dimensions | Swing-arm type (GX-L/GF-L) | 372 (W) × 615 (D) × 130 (H) mm*iii | 373 (W) × 615 (D) × 130 (H) mm*iii | ||
| Separate type (GX-LS) | 344 (W) × 442 (D) × 130 (H) mm*iv | 346 (W) × 443 (D) × 130 (H) mm*iv | |||
| Net weight | Internal adjustment type (GX-L/GX-LS) | Approx. 17 kg | Approx. 18 kg | ||
| External adjustment type (GF-L) | — | Approx. 15 kg | — | ||
