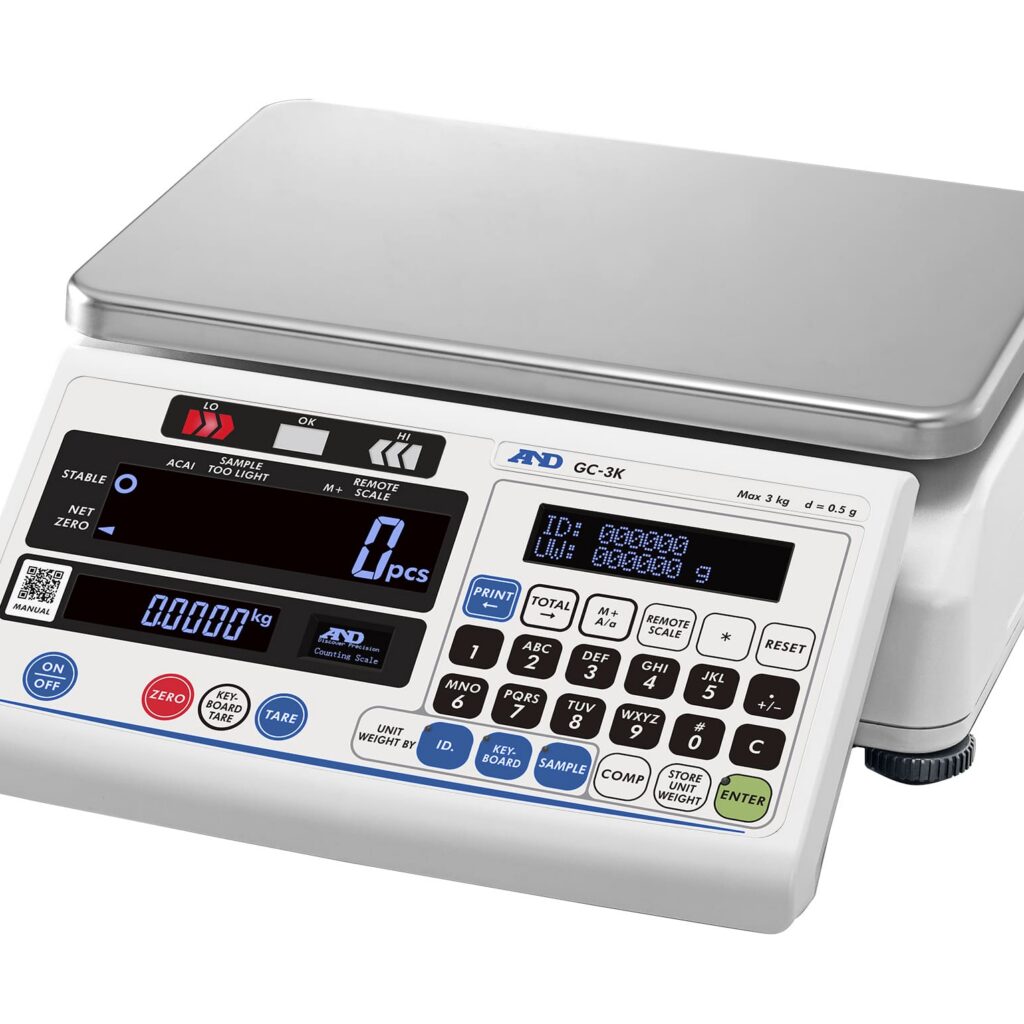

Counting Scales
Instruction manuals
■ For users with version 1.499 or earlier
Communication manual (PDF 4MB)
■ For users with version 1.500 or laterManual (PDF 18.4 MB)
* For this version, the FRD Addendum and the Communication manual are integrated into the Instruction Manual.
Automatic Item Search (AIS)*1 to instantly find a desired unit weight- Large internal memory to store data for up to 1,000 items
- WinCT-Counting (freeware) for easy management of item data
- Unit weight backup
- Memory capacity extension using a MicroSD card
- Three reverse-backlit LCD displays for count, weight, and unit weight data, and one OLED information display
- Information display also acting as a simplified guide for internal settings
- Diverse methods of unit weight setting
- Unit weight entry navigator
- Selectable power sources including mobile battery via USB cable
- Separable display unit
- RS-232C interface that supports digital connection with an A&D balance/scale
- Expanded scope of application using the AD-8561 series of Multi-Interfaces (sold separately)
- Comparator function with highly-visible LED traffic lights and buzzer
- Automatic Counting Accuracy Improvement (ACAI)
- Adjustable response characteristics
- Stabilization of approx. 1 second (typical)*2
- Universal Flexi Coms (UFC) to customize printout content and layout
- Auto power ON and OFF functions
- Password lock and key lock functions
- External input terminal
RS-232C interface
Multi-Interfaces (optional)
GC-08: Extension cable (2 m)
GC-14: Brackets for AD-8561 and cable
| Model | GC-3K | GC-6K | GC-15K | GC-30K | |
|---|---|---|---|---|---|
| Minimum unit weight*5 | Normal mode | 0.1 g | 0.2 g | 0.4 g | 1 g |
| Fine mode | 0.005 g | 0.01 g | 0.02 g | 0.05 g | |
| Capacity | 3 kg | 6 kg | 15 kg | 30 kg | |
| Readability | 0.0005 kg | 0.001 kg | 0.002 kg | 0.005 kg | |
| Number of samples | 5, 10, 25, 50, 100, or an arbitrary number of pieces | ||||
| Weighing pan | 300 mm × 210 mm | ||||
