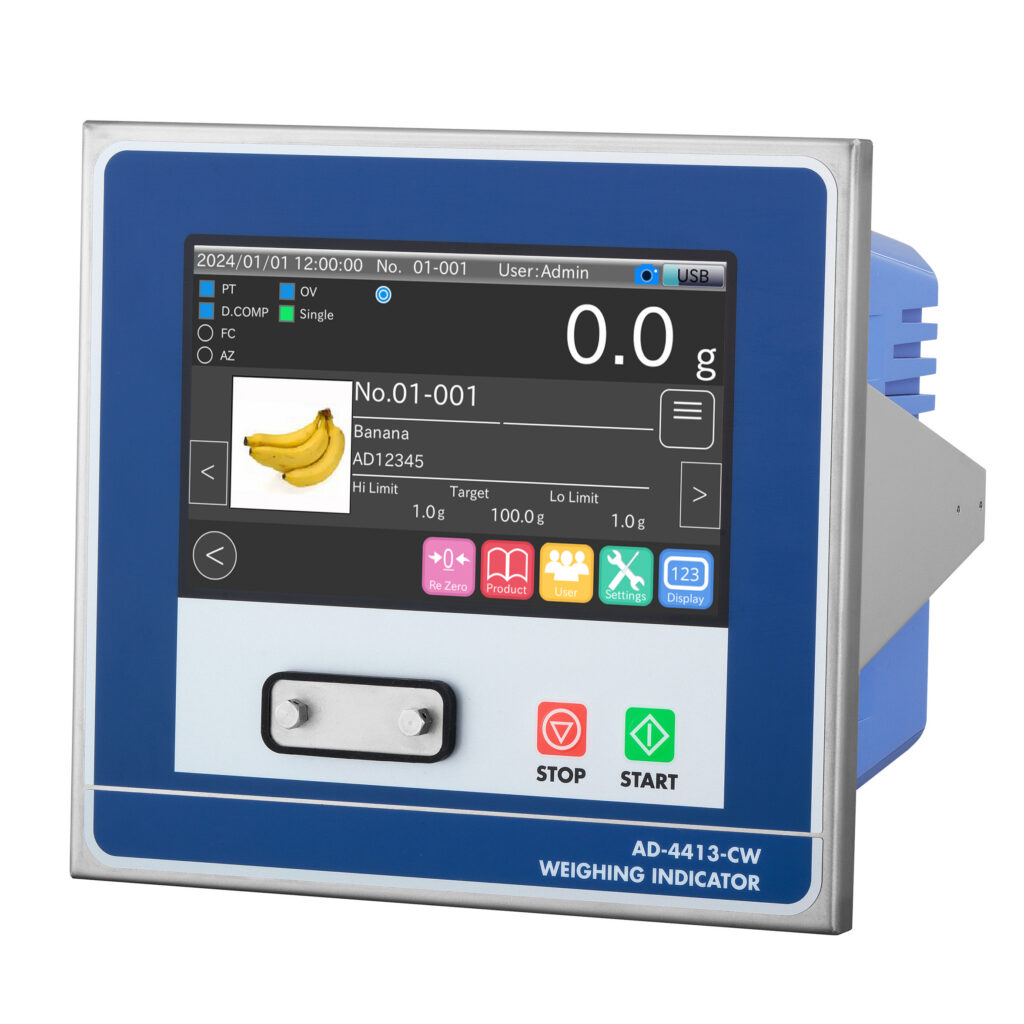

AD4413-CW

Weighing Indicator for Checkweigher

Uses a stainless steel frame to increase durability
7” color touch screen
Up to 1,000 registered items

PDFBrochure (PDF 911KB)

PDFInstruction manual (Ver.01.02.05 or before) (PDF 8.1MB)

PDFInstruction manual (Ver.02.00.00 or greater) (PDF 18.3MB)

PDFInstruction manual: Connection Setting Example (PDF 2.9MB)

Features
  • Feedback control
    Two weighing modes: Auto Mode and Conveyor Stop Mode.
    Operation history and weighing history can be saved to a USB flash drive.
    Displays measurement data on a PC via wireless LAN even during weighing.
    Automatically change product settings by scanning a barcode.
    Save data to a USB Flash Drive and import it to personal computer.
    AD4413-CW is equivalent to IP65 dust/waterproof standards when attached to the panel using the panel mount bracket.
External Input/Output
  • AD4412-02: Relay output 9 points
  • AD4412-05: Parallel I/O DI 16 points DO 16 points
  • AD4412-07: Analog output 1ch 4-20mA or 0-10V
                        add AD4412-17 x 3 then Maximum 4ch
                        Output weighing value, conveyer speed control
  • AD4412-17: Analog output module 4-20mA or 0-10V
  • AD4412-11: Bracket for display stand
